BG filter insert

Specially designed for fine filtration of gear oils

The CJC® BG Filter Inserts are designed to filter high viscosity gear oil  in a relatively compact depth filter with good dirt holding capacity. The BG Filter Inserts remove all four contamination types in one and the same process: particles, water, varnish, and acidity.
For decades, the BG Filter Inserts have proven valuable in real-life applications on wind turbine gear boxes. The BG Filter Inserts are used in CJC® Fine Filters HDU series.

Used for maintenance of high viscosity oil types:

  • Gear oils
  • Bearing lubricating oils
  • Mineral and synthetic oils

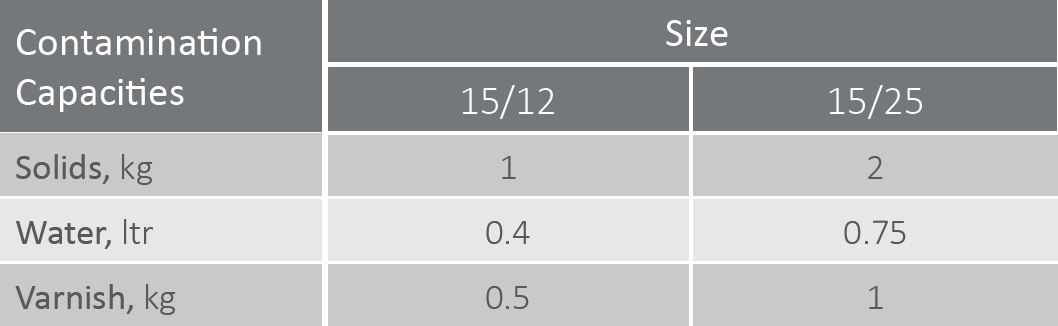

Contamination Capacities
Based on field experience we have observed that the total Dirt Holding Capacity (DHC) is dependent on shape and density of particles and other variables within an oil system.
When saturated, the total weight of accumulated contamination depends on the application, the combination of contaminants, as well as the density of the captured contamination.

Your benefits with CJC®
CJC® Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The CJC® Filter Inserts are a modular design, which allows them to fit any applications and requirements.

  • The CJC® Filter Insert features:
    • Depth media of moulded cellulose
    • Highest Contamination Capacities (DHC)
    • 100% natural cellulose fibres from sustainable resources;
      no plastic, no metal, no chemical


  • Removal of contaminants, 4-in-1:
    • Particles:
      Lifetime of both oil and component are increased considerably.
    • Oil degradation products:
      Avoid sticking valves, lacquering, and varnish on metal surfaces.
    • Water:
      Reduce the risk of micro-pitting, bacterial growth, sludge etc.
    • Acidity/TAN:
      Reduce oil ageing and wear on equipment.

  • OEM requirements
    Experience and application knowledge of C.C.JENSEN ensure that CJC® solutions can meet specifications from OEMs on oil cleanliness.

How to ensure Clean & Dry oil
Remember to change CJC® Filter Inserts according to pressure gauge or at least once a year in order to ensure clean & dry oil! - Click here to learn how to replace a CJC® Filter Insert.

Fiches de produits

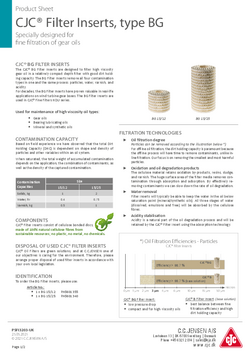

Filter Insert type BG_PSFI3203

Informations connexes

General_Dirt holding capacity creates value
100 % natural cellulose fibers
