AK filter insert

Specially designed for filtration and removal of humidity from low viscosity oils

The CJC® AK Filter Inserts are based on the standard A Filter Inserts, but extra dried and vacuum packed, so the cellulose filter media contains no humidity. It is designed with fine filtration, high dirt and water holding capacity in mind, resulting in a low cost for removing one kilo of contamination from oil.
Due to the relatively high-pressure loss compared to other CJC® inserts, the AK Filter Inserts are primarily used for low viscosity or warm oils, where below 50 ppm of humidity content is required.
The AK Filter Inserts remove all four contamination types in one and the same process: particles, water, varnish, and acidity. The AK Filter Inserts are used in CJC® Fine Filters HDU series.

Used for maintenance of below applications:

  • Transformers
  • Tap changers
  • Small hydraulic systems

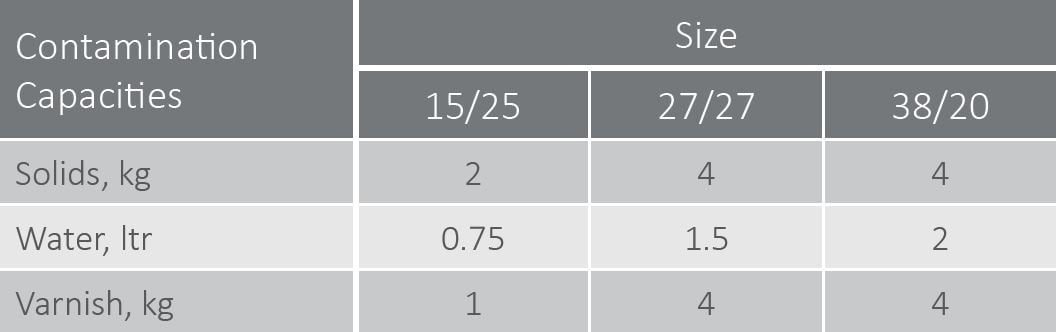

Contamination Capacities
Based on field experience we have observed that the total Dirt Holding Capacity (DHC) is dependent on shape and density of particles and other variables within an oil system.
When saturated, the total weight of accumulated contamination depends on the application, the combination of contaminants, as well as the density of the captured contamination.

Your benefits with CJC®
CJC® Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The CJC® Filter Inserts are a modular design, which allows them to fit any applications and requirements.

  • The CJC® Filter Insert features:
    • Depth media of moulded cellulose
    • Highest Contamination Capacities (DHC)
    • 100% natural cellulose fibres from sustainable resources;
      no plastic, no metal, no chemical


  • Removal of contaminants, 4-in-1:
    • Particles:
      Lifetime of both oil and component are increased considerably.
    • Oil degradation products:
      Avoid sticking valves, lacquering, and varnish on metal surfaces.
    • Water:
      Reduce the risk of micro-pitting, bacterial growth, sludge etc.
    • Acidity/TAN:
      Reduce oil ageing and wear on equipment.

  • OEM requirements
    Experience and application knowledge of C.C.JENSEN ensure that CJC® solutions can meet specifications from OEMs on oil cleanliness.

How to ensure Clean & Dry oil
Remember to change CJC® Filter Inserts according to pressure gauge or at least once a year in order to ensure clean & dry oil! - Click here to learn how to replace a CJC® Filter Insert.

Arkusze produktu

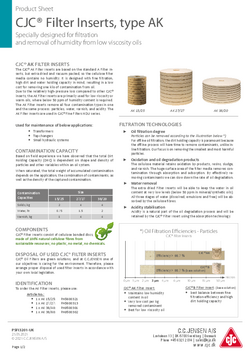

Filter Insert type AK_PSFI3201
