BLAT filter insert

Specially designed for filtration and separation of water from turbine oils

The CJC® BLAT Filter Insert is designed for continuous separation of water from lubricants with good demulsibility and a density lower than that of water.
The BLAT Filter Insert removes all four contamination types in one and the same process: particles, water, varnish, and acidity. The BLAT Filter Insert is used in CJC® Filter Seperator PTU series.

Used for maintenance of below oils:

  • Turbine oils
  • Hydraulic oils
  • Gear and lubricating oils up to ISO VG150
  • Diesel and gas oil

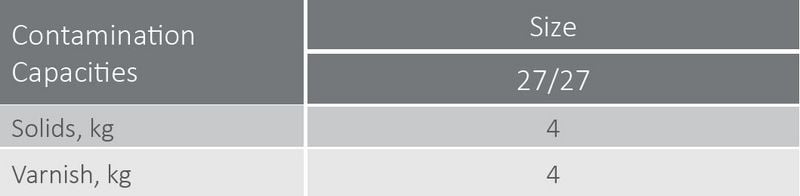

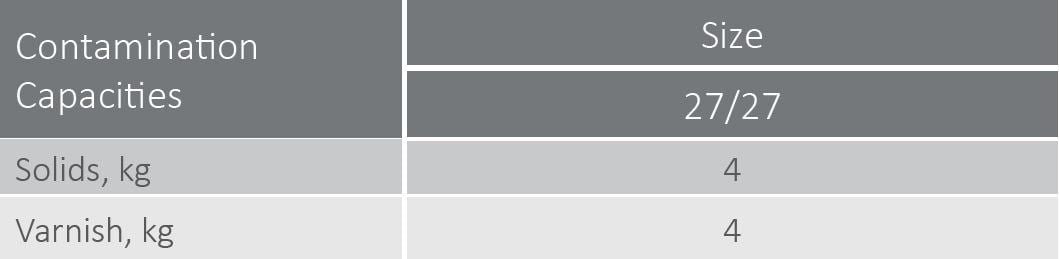

Contamination Capacities:
Based on field experience we have observed that the total Dirt Holding Capacity (DHC) is dependent on shape and density of particles and other variables within an oil system.
When saturated, the total weight of accumulated contamination depends on the application, the combination of contaminants, as well as the density of the captured contamination.

Your benefits with CJC®
CJC® Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The CJC® Filter Inserts are a modular design, which allows them to fit any applications and requirements.

  • The CJC® Filter Insert features:
    • Depth media of moulded cellulose
    • Highest Contamination Capacities (DHC)
    • 100% natural cellulose fibres
  • Removal of contaminants, 4-in-1:
    • Particles:
      Lifetime of both oil and component are increased considerably.
    • Oil degradation products:
      Avoid sticking valves, lacquering, and varnish on metal surfaces.
    • Water:
      Reduce the risk of micro-pitting, bacterial growth, sludge etc.
    • Acidity/TAN:
      Reduce oil ageing and wear on equipment.
  • OEM requirements
    Experience and application knowledge of C.C.JENSEN ensure that CJC® solutions can meet specifications from OEMs on oil cleanliness.

How to ensure Clean & Dry oil
Remember to change CJC® Filter Inserts according to pressure gauge or at least once a year in order to ensure clean & dry oil! - Click here to learn how to replace a CJC® Filter Insert.

Arkusze produktu

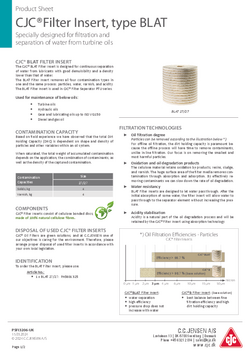

Filter Insert type BLAT_PSFI3206
