filter insert

Specially designed for filtration of diesel and thermal oils

The CJC® F Filter Inserts are designed with fine filtration, high dirt holding capacity and low operation cost in mind. The F inserts remove contaminants like particles, water, bacteria and asphaltenes from diesel plus varnish and acidity from oil in one and the same process. The F Filter Inserts can be used in both CJC® Fine Filters HDU series and CJC® Filter Separators PTU series.

Used in the CJC® Filter Separators PTU it will continuously separate water from light distillates:

  • Diesel
  • Gas oils

Used in a CJC® Fine Filters HDU it will very cost efficiently remove large amounts of particles, varnish and slugde from:

  • Quenching oils
  • Heat transfer oils

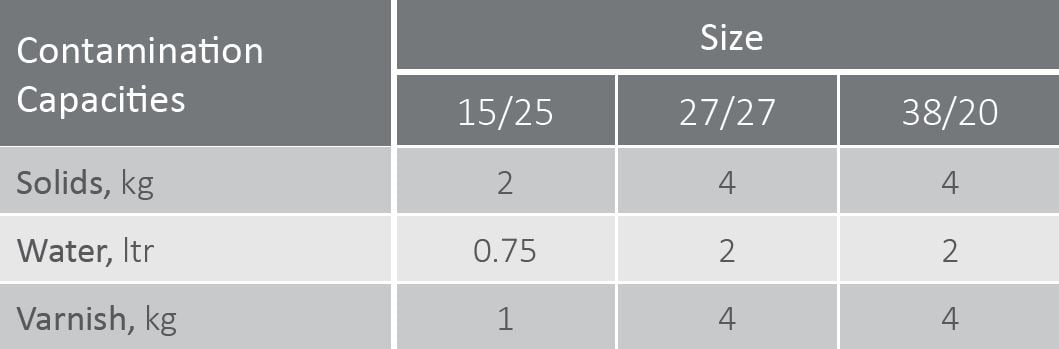

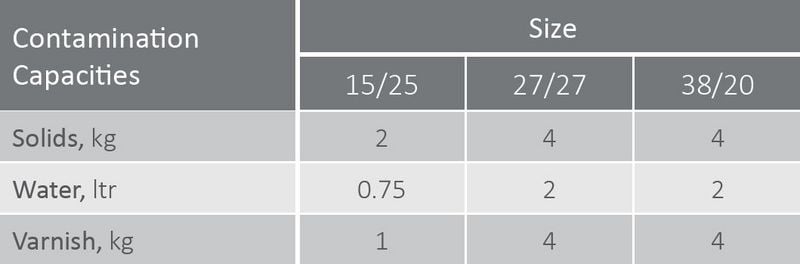

Contamination Capacities
Based on field experience we have observed that the total Dirt Holding Capacity (DHC) is dependent on shape and density of particles and other variables within an oil system.
When saturated, the total weight of accumulated contamination depends on the application, the combination of contaminants, as well as the density of the captured contamination.

Your benefits with CJC®
CJC® Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The CJC® Filter Inserts are a modular design, which allows them to fit any applications and requirements.

  • The CJC® Filter Insert features:
    • Depth media of moulded cellulose
    • Highest Contamination Capacities (DHC)
    • 100% natural cellulose fibres from sustainable resources;
      no plastic, no metal, no chemical


  • Removal of contaminants, 4-in-1:
    • Particles:
      Lifetime of both oil and component are increased considerably.
    • Oil degradation products:
      Avoid sticking valves, lacquering, and varnish on metal surfaces.
    • Water:
      Reduce the risk of micro-pitting, bacterial growth, sludge etc.
    • Acidity/TAN:
      Reduce oil ageing and wear on equipment.

  • OEM requirements
    Experience and application knowledge of C.C.JENSEN ensure that CJC® solutions can meet specifications from OEMs on oil cleanliness.

How to ensure Clean & Dry oil
Remember to change CJC® Filter Inserts according to pressure gauge or at least once a year in order to ensure clean & dry oil! - Click here to learn how to replace a CJC® Filter Insert.

Product Sheets

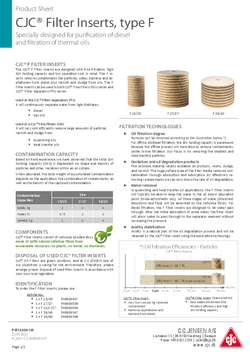

Filter Insert type F_PSFI3208
