BLA filter insert

Specially designed for filtration of water containing oils & fluids

The CJC® BLA Filter Inserts are designed for fine filtration of lubricants containing water. The BLA Filter Inserts will allow water to pass through, but will retain particles and varnish.
The BLA Filter Inserts are mainly used in CJC® Fine Filter HDU series, but also in CJC® Filter Separators PTU 15/- series. A CJC® Desorber can, if required, remove the water from the specialised lubricant.

Used for maintenance of below oils and fluids:

  • EALs, MorgOils, paper machine lube oils
  • Water glycol-based fluid (PEG)
  • Water based fire resistant fluid (HFA, HFB)
  • Water based machine tooling fluid

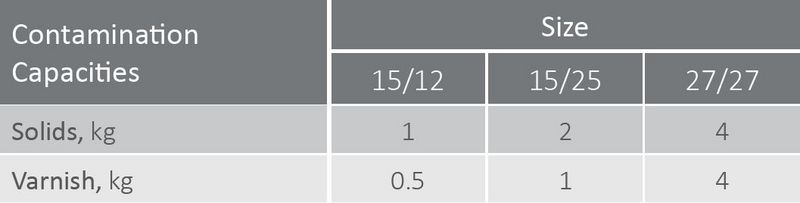

Contamination Capacities
Based on field experience we have observed that the total Dirt Holding Capacity (DHC) is dependent on shape and density of particles and other variables within an oil system.
When saturated, the total weight of accumulated contamination depends on the application, the combination of contaminants, as well as the density of the captured contamination.

Your benefits with CJC®
CJC® Filter Inserts have the highest dirt holding capacity on the market due to special cellulose-based material. Furthermore, the unique construction of the bonded discs, creates a large filtration area resulting in reduced costs of ownership. The CJC® Filter Inserts are a modular design, which allows them to fit any applications and requirements.

  • The CJC® Filter Insert features:
    • Depth media of moulded cellulose
    • Highest Contamination Capacities (DHC)
    • 100% natural cellulose fibres

  • Removal of contaminants, 4-in-1:
    • Particles:
      Lifetime of both oil and component are increased considerably.
    • Oil degradation products:
      Avoid sticking valves, lacquering, and varnish on metal surfaces.
    • Water:
      Reduce the risk of micro-pitting, bacterial growth, sludge etc.
    • Acidity/TAN:
      Reduce oil ageing and wear on equipment.

  • OEM requirements
    Experience and application knowledge of C.C.JENSEN ensure that CJC® solutions can meet specifications from OEMs on oil cleanliness.

How to ensure Clean & Dry oil
Remember to change CJC® Filter Inserts according to pressure gauge or at least once a year in order to ensure clean & dry oil! - Click here to learn how to replace a CJC® Filter Insert.

Product Sheets

Filter Insert type BLA_PSFI3205
